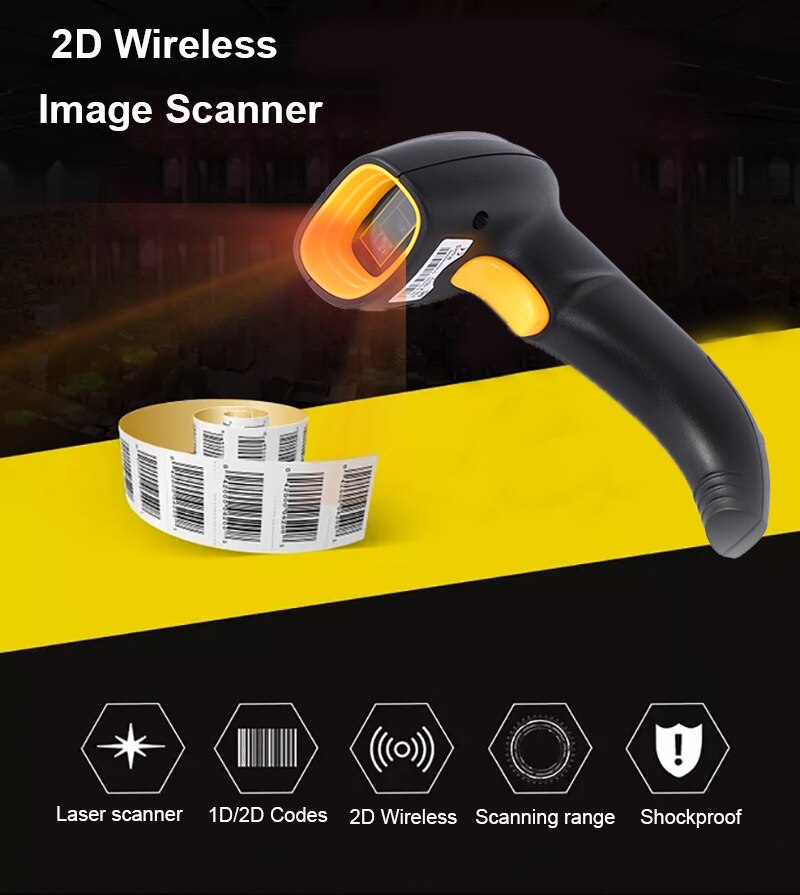

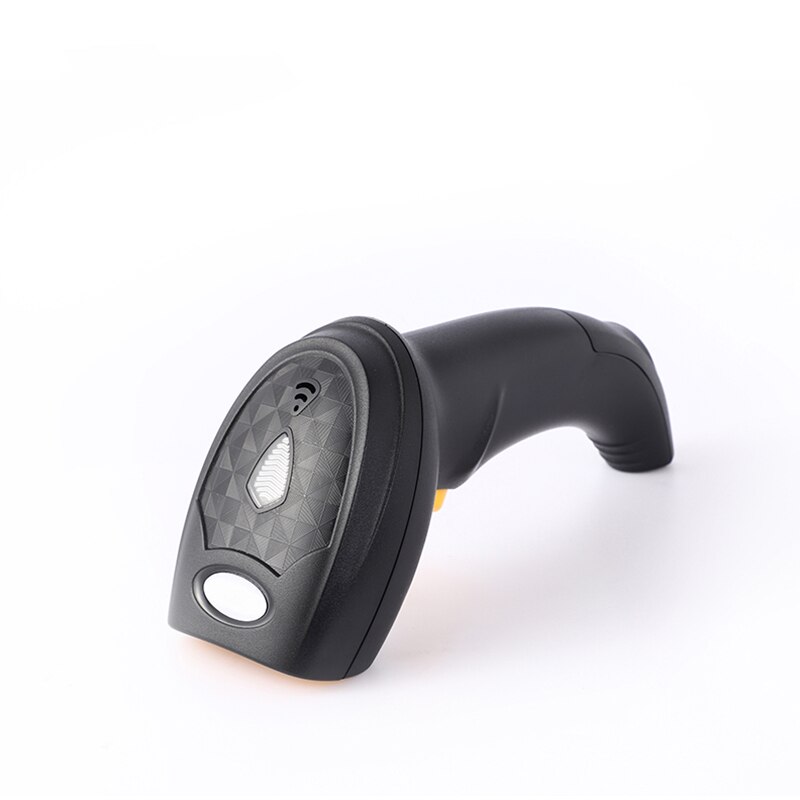

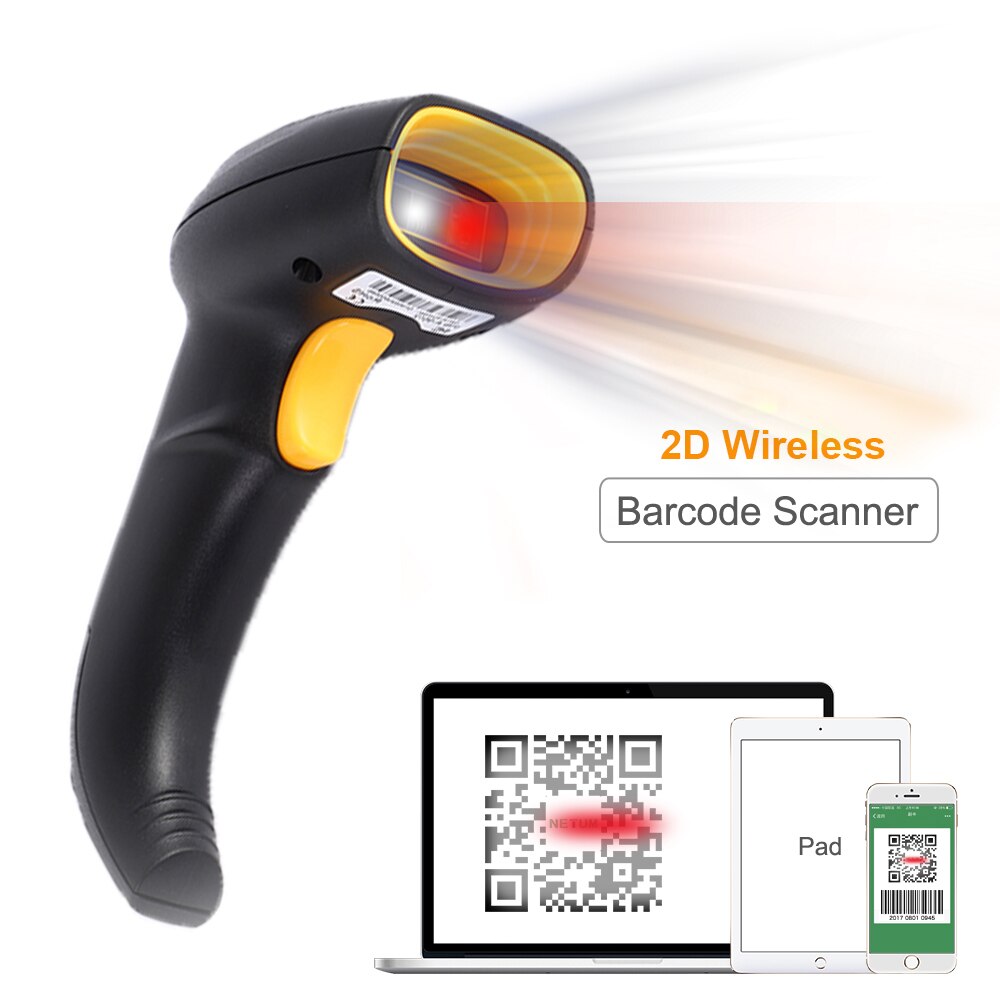

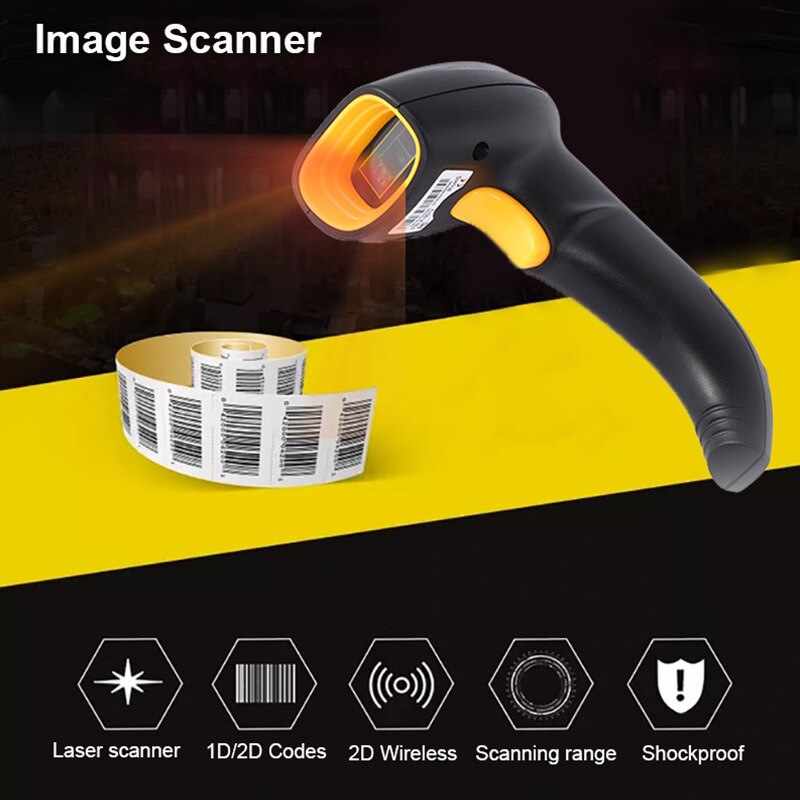

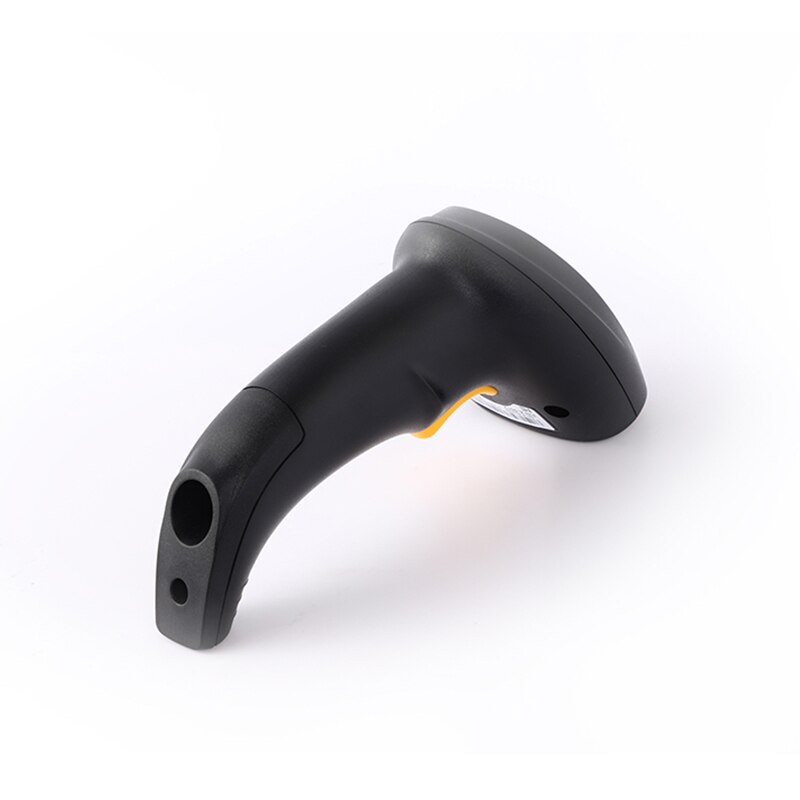

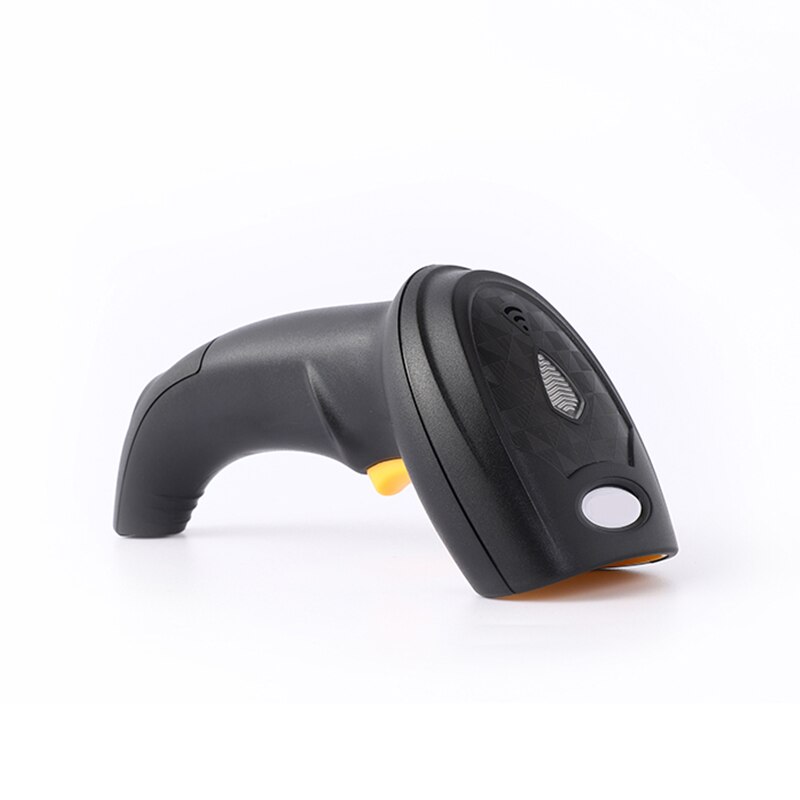

2D Barcode Scanner Bluetooth 1D/2D QR Bar Code Reader Support Mobile Phone iPad Handheld Reader

Wireless Parameters

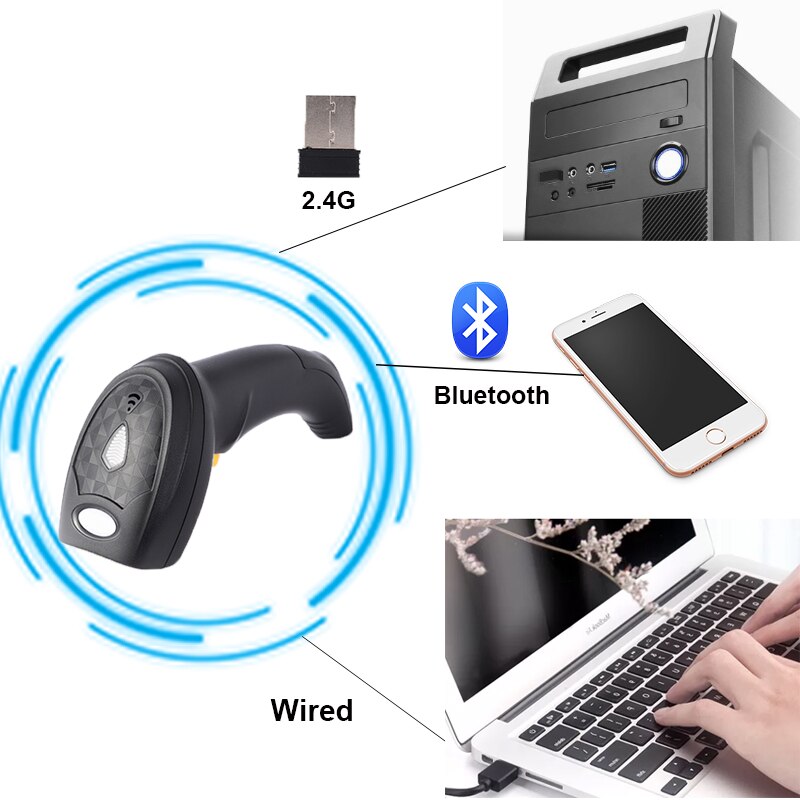

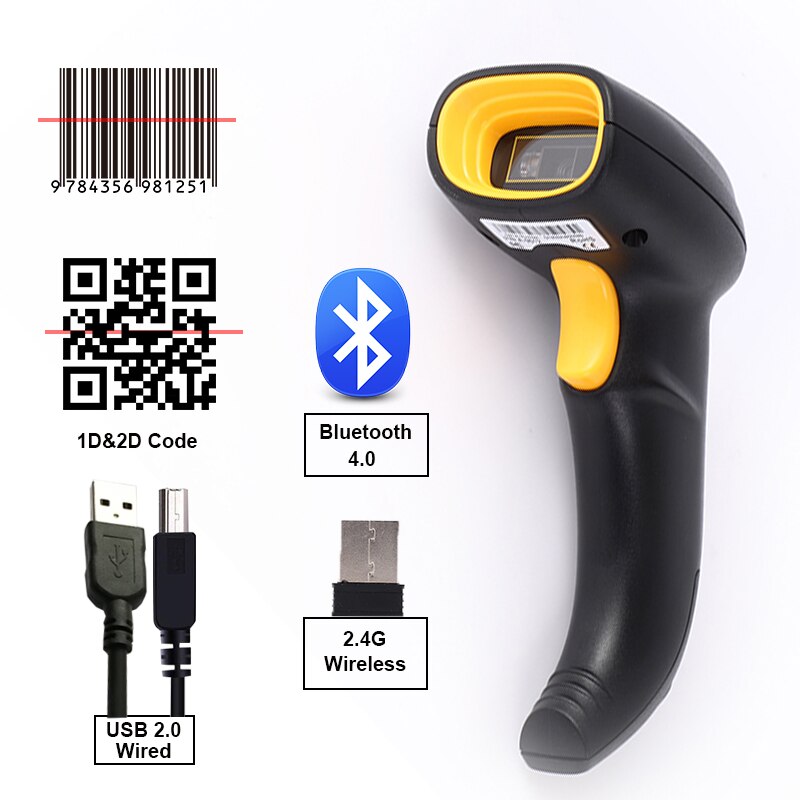

Transmission mode:2.4g compatible with bluetooth mode; wireless and wired mode free switching
Transmission Distance: Open range: 2.4G: 100 meters; Bluetooth: 50 meters
Bluetooth mode: Bluetooth support HID, SPP, BLE, virtual bluetooth mode;
Support to pop up/hide IOS keyboard;
Support long press to quickly enter HID mode

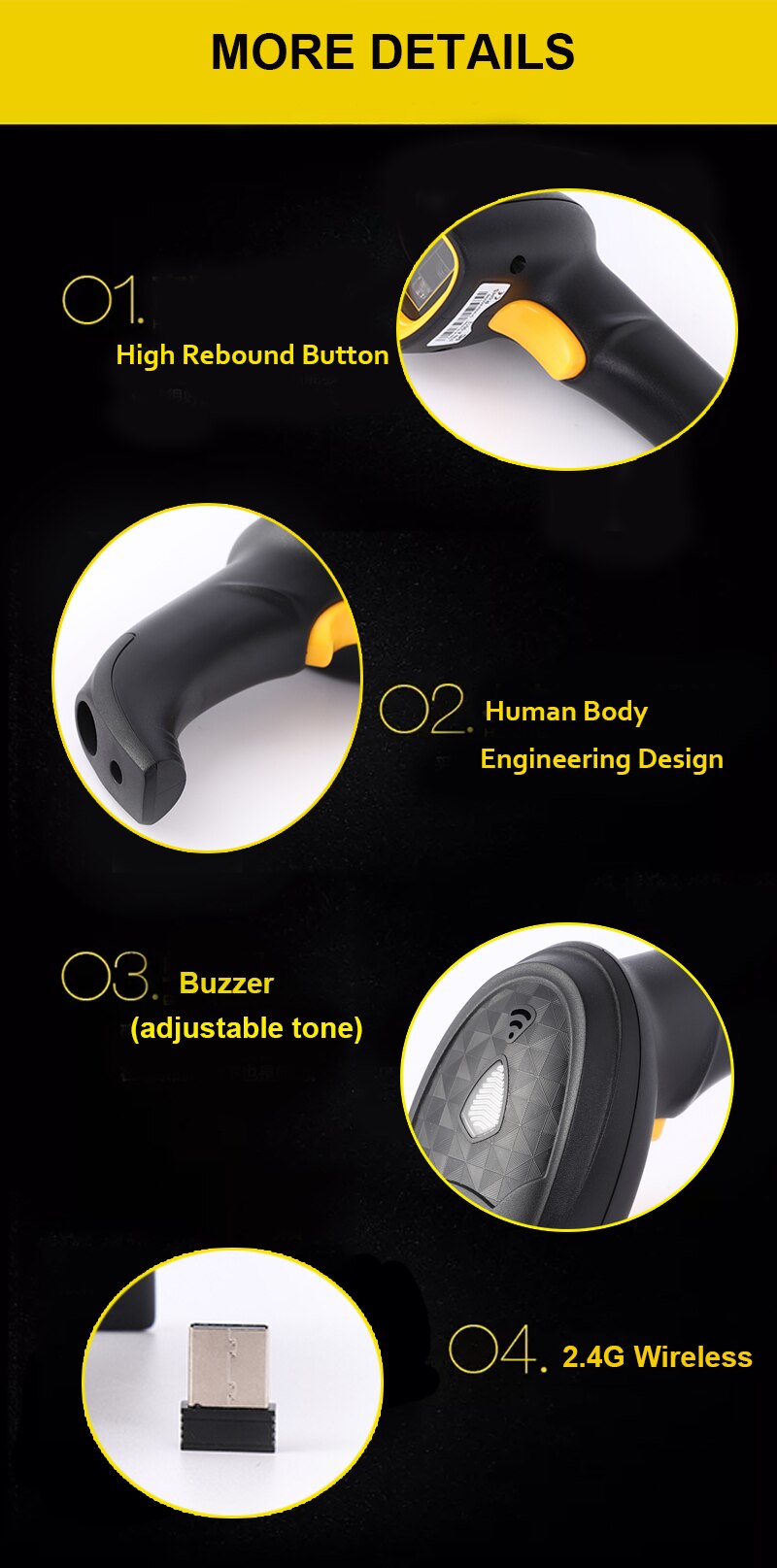

Prompt: Buzzer. Vibration;
Power display: Low power warning
Transmission mode: Inventory mode; Inventory data query; Upload inventory data; Inventory data deletion
USB transmission language; 2.4 G; Bluetooth mode supports Chinese barcode recognition and transmission;
Support android; Windows and other Chinese direct transmission

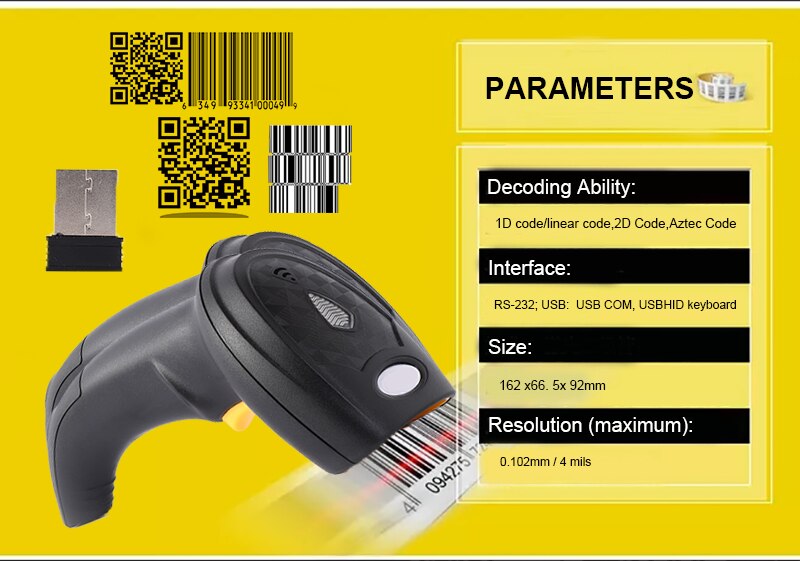

Decoding Ability
· 1D code/linear code :Automatic identification & decoding of all standard 1D codes including GS1 DataBar™ linear codes

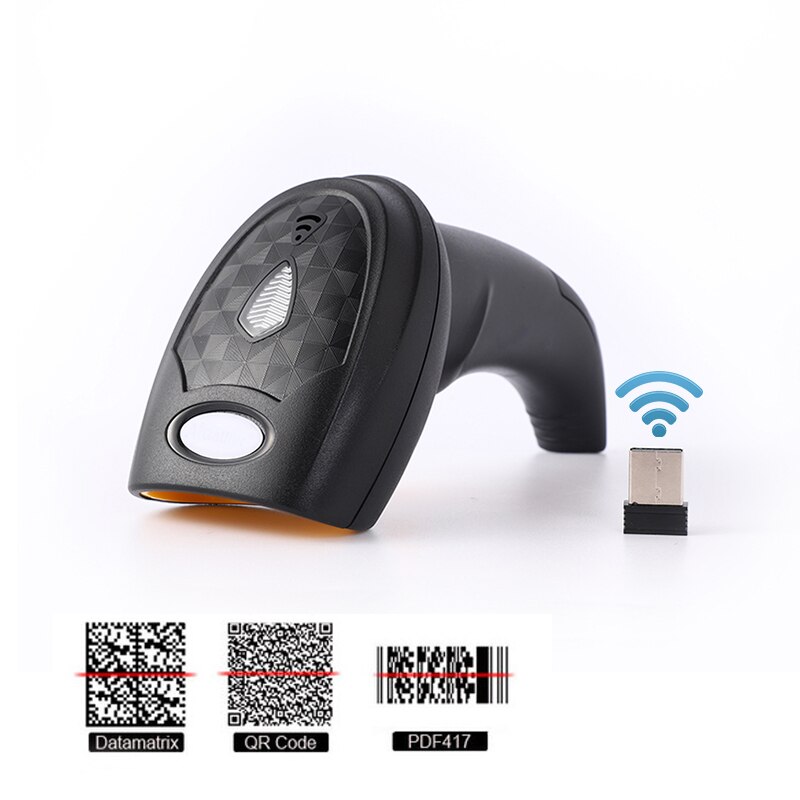

· 2D Code:Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code
GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked
Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417

Scan Range
The standard depth of field :The minimum depth of field is determined by the length of the bar code and the scanning Angle. Depends on print resolution, contrast and ambient light.
·1D / Linear Codes
5 mils: 2.5-12cm / 1.0-4.7 in
7 mils: 2.5-17cm / 1.0 - 6.7 in
10 mils: 2.5-19 cm / 1.0-7.5in
13 mils UPC: 2.5-26cm / 1.0 -10.2in
·2D Codes
6 mils PDF417: 2.5-13cm / 1.0-5.1 in
10 mils Data Matrix: 1-14cm / 0.4-5.5in
10 mils PDF417: 1-19cm / 0.4-7.5 in
15 mils PDF417: 1-30cm / 0.4-11.8in
24 mils Data Matrix: 1-26cm / 0.4-10.2in
